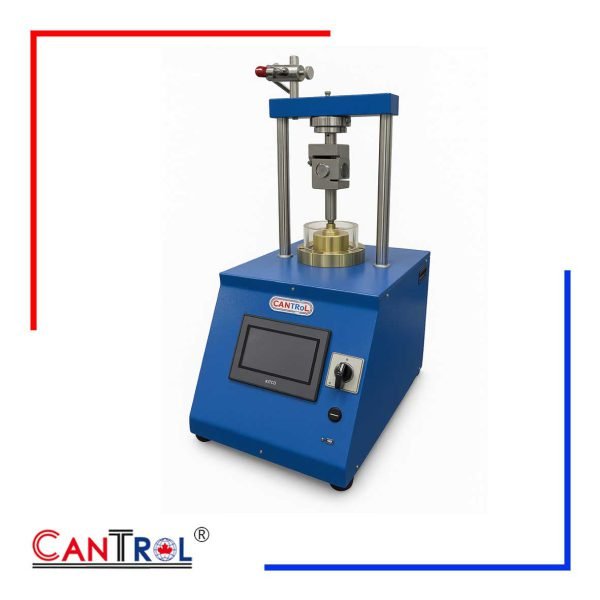

Fully Automatic Consolidation Test Apparatus

Fully Automatic Consolidation Test Apparatus is a cutting-edge, high-performance system engineered to deliver exceptional accuracy, unmatched consistency, and fully automated control for soil consolidation testing. Designed for modern geotechnical laboratories, universities, research institutions, and civil engineering firms, this powerful apparatus eliminates manual intervention, minimizes operator error, and ensures reliable results in full compliance with international soil mechanics standards. Built with robust materials, intelligent automation, and real-time digital monitoring, the Fully Automatic Consolidation Test Apparatus is the ultimate solution for precise determination of settlement characteristics in undisturbed and remolded soil samples.

Model	2816031	2816032
Description	Fully Automatic Consolidation Machine	Fully Automatic Consolidation Machine
Power Supply	120V, 60Hz	220V, 50Hz
Indicator	10mm div. 0.002mm Digital Sensor	LVDT 10mm div. 0.002mm
Load Cell	10kN S.Steel Load Cell	10kN S.Steel Load Cell
	Servo Motor Drive	Servo Motor Drive
Dimension
Apparatus Weight

Fully Automatic Consolidation Test Apparatus Designed for Precision Soil Consolidation Testing

The Fully Automatic Consolidation Test Apparatus is specifically designed to evaluate the compressibility and consolidation behavior of soils under controlled load increments. By automating the entire load application process, the device maintains perfectly regulated stress conditions, providing flawless reproducibility and long-term stability.

Its fully automatic loading mechanism replaces traditional manual lever-arm systems, ensuring that each load increment is applied smoothly, accurately, and consistently—critical for determining key geotechnical parameters such as:

• Coefficient of consolidation (Cv)

• Compression index (Cc)

• Recompression index (Cr)

• Preconsolidation pressure (σp)

• Settlement prediction for foundations, embankments, and earth structures

By minimizing human involvement, the Fully Automatic Consolidation Test Apparatus dramatically enhances data reliability, making it ideal for laboratories seeking superior testing efficiency.

Fully Automatic Consolidation Test Apparatus with Intelligent Digital Control System

At the core of the Fully Automatic Consolidation Test Apparatus is an advanced PLC-based control system equipped with real-time algorithms, digital sensors, and a user-friendly touchscreen interface. This intelligent system automates loading, unloading, timing cycles, and data acquisition with remarkable accuracy.

Key digital capabilities include:

• Automated load application with preset increment sequences

• Real-time monitoring of deformation and load response

• High-precision vertical displacement measurement through LVDT

• Automatic adjustment to maintain constant stress

• Data logger with large internal storage capacity

• USB and PC connectivity for external data management

• Automated safety checks to prevent overload and system malfunction

The result is a powerful, intuitive testing platform that ensures every consolidation test is executed exactly according to standards—without operator intervention.

Fully Automatic Consolidation Test Apparatus Built for Long-Term Durability

The Fully Automatic Consolidation Test Apparatus is constructed using premium-grade materials, including high-rigidity aluminum frames, stainless-steel loading mechanisms, and precision-machined consolidation rings. This heavy-duty design ensures the apparatus can withstand prolonged testing cycles, continuous loading, and demanding laboratory environments.

Structural and mechanical advantages include:

• Reinforced main frame for perfect alignment

• Corrosion-resistant components for long-term laboratory use

• Stainless-steel consolidation cells available in multiple diameters

• High-capacity load actuator engineered for smooth force delivery

• Maintenance-free electromechanical drive system

These components make the Fully Automatic Consolidation Test Apparatus a reliable piece of equipment engineered to operate flawlessly for years without structural deformation or calibration drift.

Fully Automatic Consolidation Test Apparatus with Multiple Cell Options

To support a wide range of soil types and laboratory standards, the Fully Automatic Consolidation Test Apparatus accommodates consolidation cells in various sizes, including:

• 50 mm

• 61.5 mm

• 71.5 mm

• 75 mm

Each cell is precision-machined to ensure uniform load distribution and accurate vertical deformation measurement. Additional accessories such as porous stones, cutting rings, and sample preparation tools can be integrated seamlessly.

Why Choose the Fully Automatic Consolidation Test Apparatus?

The Fully Automatic Consolidation Test Apparatus offers unmatched advantages that significantly elevate laboratory productivity and accuracy:

• Powerful automation reduces human error and testing time

• Precise digital control ensures consistent loading conditions

• Real-time monitoring improves data quality

• Large storage capacity simplifies documentation and reporting

• Standards-compliant performance supports AASHTO, ASTM, and ISO procedures

• Durable construction ensures decades of reliable operation

• User-friendly interface simplifies training and daily operation

With these premium features, this advanced system becomes a critical asset in any high-performance geotechnical laboratory.

 Fully Automatic Consolidation Test Apparatus: A Smart Investment for Professional Soil Testing

Whether you’re analyzing settlement for foundation design, embankment behavior, or long-term soil compressibility, the Fully Automatic Consolidation Test Apparatus provides laboratory teams with the confidence and precision needed for world-class geotechnical evaluation. Its combination of automation, accuracy, and structural robustness ensures that every test meets the highest professional standard.
