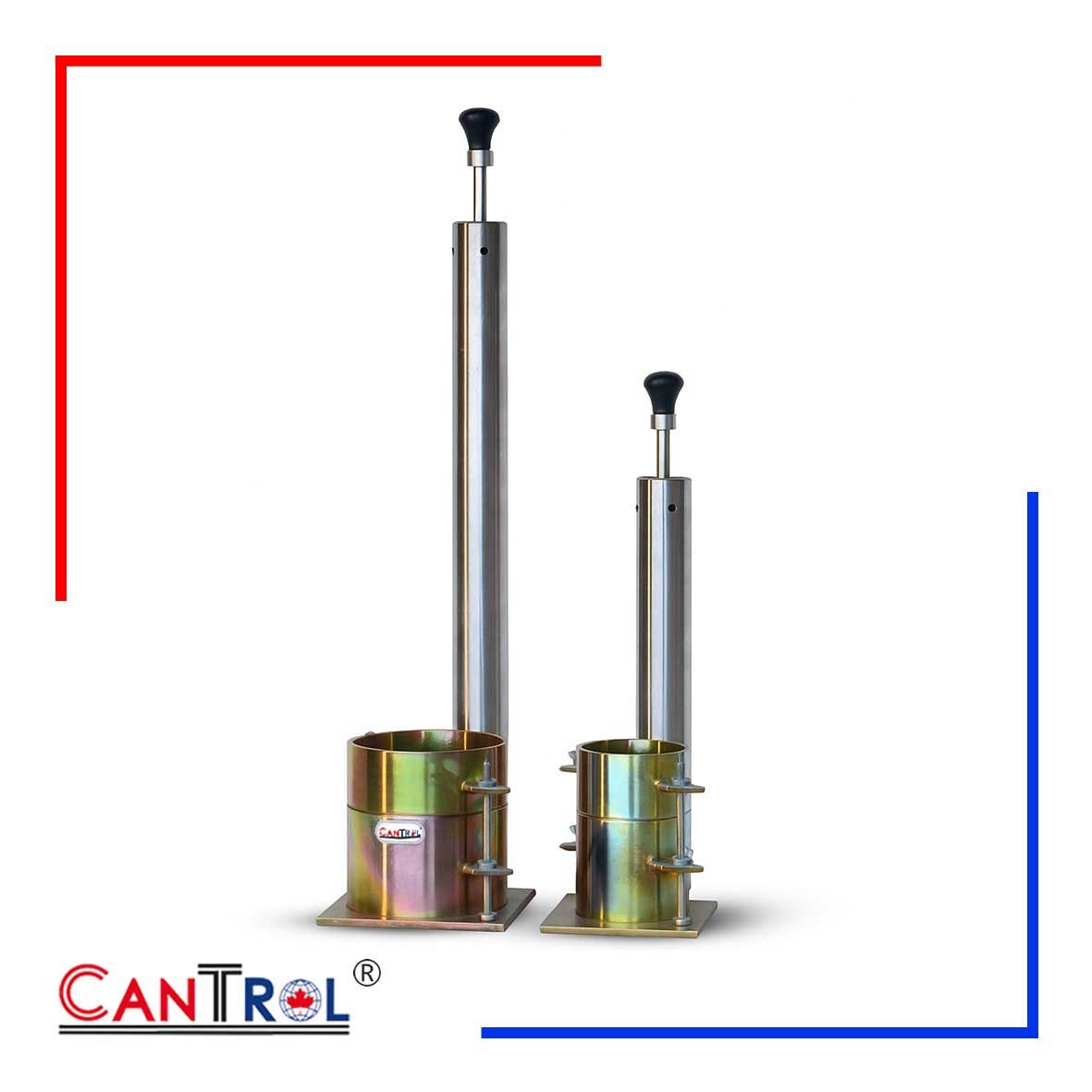

Laboratory Soil Proctor Molds & Hammers

Soil Proctor Molds and Rammers are essential tools in geotechnical engineering, providing accurate, repeatable measurements for determining the relationship between the moisture content and density of compacted soil. These high-performance Soil Proctor Molds and Rammers ensure dependable results that meet industry standards, making them indispensable for laboratories, construction companies, soil testing facilities, and quality-control departments.

By delivering reliable compaction data, Soil Proctor Molds and Rammers help engineers design safer foundations, build stronger structures, and ensure compliance with soil compaction specifications. Their robust construction, corrosion-resistant finish, and professional-grade engineering ensure long-term usability and consistent performance.

Model	2813010	2813020	2813050	2813060	2813030	2813040
Description	Soil Density Mold Set	Soil Density Mold Set	Compaction Hammer	Compaction Hammer	Soil Compaction Hammer	Soil Compaction Hammer
Diameter	4 inches	6 inches	–	–	–	–
Material	Galvanized Steel	Galvanized Steel	All Stainless Steel	All Stainless Steel	Galvanized Steel	Galvanized Steel
Drop Height	–	–	–	–	12 inches	–
Weight	4.9 kg	8.2 kg	4.5 kg	7.5 kg	4.3 Kg	7.5 kg

Soil Proctor Molds and Rammers — Essential Equipment for Accurate Soil Compaction Testing

The Soil Proctor Molds and Rammers set consists of precision-engineered molds and heavy-duty rammers specifically designed for standard and modified Proctor tests. These tests evaluate how soil density changes with moisture variations, allowing engineers to identify the optimum moisture content (OMC) and maximum dry density (MDD) of soil.

Accurate compaction testing is crucial for road construction, embankments, dams, building foundations, and any project involving earthworks. Soil Proctor Molds and Rammers ensure these results are both dependable and compliant with international standards.

Construction and Design of High-Quality Soil Proctor Molds and Rammers

Every component of the Soil Proctor Molds and Rammers is built for durability and precision. The mold assembly includes:

• A detachable collar for easy soil placement

• A rigid main body ensuring accurate volume measurement

• A solid base plate designed for stability during compaction

To prevent corrosion and extend the service life of the equipment, all parts are coated with galvanized plating, offering superior resistance against moisture, soil acidity, and heavy laboratory use.

The rammer features:

• A guide sleeve with vent holes to ensure smooth, uniform compaction

• A durable construction that meets standard Proctor or modified Proctor test requirements

• Consistent drop height and weight to maintain repeatable test conditions

This meticulous design ensures that Soil Proctor Molds and Rammers deliver exceptional accuracy and long-term reliability.

Why Soil Proctor Molds and Rammers Are Critical in Geotechnical Engineering

Using Soil Proctor Molds and Rammers offers several compelling advantages for soil analysis and compaction control:

1. Precise and repeatable results
   The combination of a stable mold and accurately weighted rammer ensures that every compaction layer is consistent.

2. High corrosion resistance
   Thanks to their galvanized coating, these tools maintain quality and performance even in demanding testing environments.

3. Compatibility with international testing standards
   Ideal for laboratories that must comply with ASTM and equivalent soil testing procedures.

4. Easy to use and maintain
   Simple assembly and disassembly help technicians work more efficiently.

5. Critical data for safe construction
   Determining moisture–density relationships allows engineers to prevent settlement issues, soil failure, and structural weakness.

Soil Proctor Molds and Rammers — Applications in Real-World Projects

The Soil Proctor Molds and Rammers set plays a vital role in a wide range of construction and geotechnical applications:

• Highway and pavement design

• Earth embankments and backfills

• Airfield runway construction

• Dam and levee compaction

• Commercial and residential building foundations

• Railway subgrade preparation

For each of these projects, achieving proper soil compaction is essential for long-term performance. By using high-quality Soil Proctor Molds and Rammers, engineers can ensure that the soil beneath a structure meets the required strength and density standards.

Choosing the Best Soil Proctor Molds and Rammers for Your Laboratory

When selecting Soil Proctor Molds and Rammers, consider the following:

• Compliance with ASTM D698 (Standard Proctor) or ASTM D1557 (Modified Proctor)

• Mold volume and height

• Material durability and type of protective coating

• Precision of the guide sleeve and rammer drop height

• Compatibility with your laboratory’s testing setup

High-quality Soil Proctor Molds and Rammers ensure that every compaction test is accurate, efficient, and compliant with professional standards.

 Soil Proctor Molds and Rammers — A Powerful Investment for Long-Term Accuracy

Investing in reliable Soil Proctor Molds and Rammers ensures consistent soil compaction results, which directly contribute to safer, stronger, and longer-lasting structures. Whether you are operating a commercial soil testing lab or managing on-site quality control, these tools provide the performance, durability, and accuracy needed for professional-grade geotechnical analysis.
